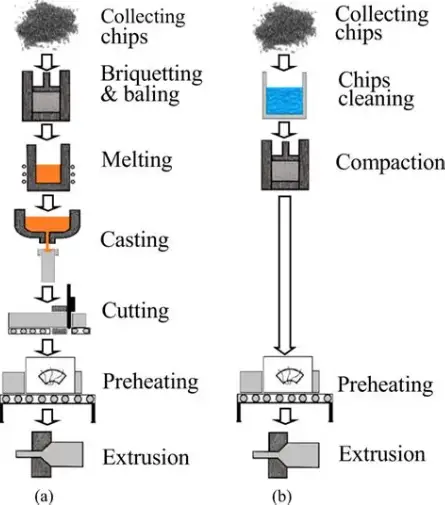

Aluminum extrusion process flow

Aluminum extrusion converts heated solid billet into continuous profiles by forcing material through a shaped steel die under high pressure; controlling billet temperature, die design, press selection, ram speed, cooling rate, and downstream straightening directly determines mechanical performance, dimensional accuracy, and production throughput.

Process overview: core stages

Aluminum extrusion breaks into discrete stages: raw material handling, billet heating, die preparation, extrusion press operation, cooling, stretching and straightening, cutting, and surface finishing. Each stage interacts with material microstructure and dimensional control. The industry-standard sequence matches this list.

Stage 1: material selection and billet prep

Choose alloy and temper that match mechanical needs and extrusion complexity. Common families include 1000, 3000, 5000, 6000, and 7000 series. For general structural profiles that require good extrudability and moderate strength, 6000 series alloys (for example 6061, 6063) are typical. For high-strength aerospace parts, 7000 series may be used but often require specialized facilities. Industry manuals document typical alloy use per market segment.

Table 1: common extrusion alloys and typical uses

Stage 2: billet heating and temperature control

Billets receive controlled heating to achieve plasticity without melting. Typical billet furnace setpoints lie between roughly 400°C and 500°C. Die preheat temperatures commonly target a similar band, often 450°C to 500°C. Proper thermal uniformity reduces extrusion loads and minimizes die wear. Temperature management remains one of the primary levers for consistent flow and surface finish.

Key numbers (process setpoints)

Stage 3: die design and tooling

Die design defines cross-section geometry, wall thickness limits, and required extrusion ratio. Dies are machined from H13 tool steel and receive preheat and finishing. Designers incorporate feeders, bridges, and bearing lengths to control metal flow and prevent defects like surface cracking or internal voids. Tool life connects to lubrication, die temperature, and alloy abrasiveness.

Practical limits: thin walls under 1.5 mm create flow challenges; long unsupported cavities increase die pressure considerably. Reference design-limit tables from extruder councils provide recommended section thickness and minimum radii for reliable production.

Stage 4: press types and how selection changes process

Two main press families: direct (forward) extrusion and indirect (backward) extrusion. Direct presses push the ram and dummy block forward to force billet through the die located at the container end. Indirect presses keep the die stationary while the container moves toward the billet, reducing friction between billet and container wall. Press tonnage requirement scales with profile complexity and extrusion ratio; small architectural sections might need a few hundred tons, while large heavy profiles may demand thousands to tens of thousands of tons.

Stage 5: extrusion operation: ram speed, ratio, and flow control

Extrusion ratio equals billet cross-sectional area divided by profile cross-sectional area. Higher ratios increase required force exponentially. Ram speed influences surface finish and internal grain structure. Typical operational practice targets steady ram advance that keeps material flow stable; abrupt speed shifts produce surface defects. Technical literature connects productivity to ram stroke planning and die thermal control.

Stage 6: cooling, quenching, and microstructure control

After material exits the die, the profile must cool. Cooling method choices include air cooling, controlled spray cooling, or water-based quench. Cooling rate within the range between about 510°C and 315°C strongly affects grain size and final mechanical properties. Faster cooling typically refines microstructure and raises hardness; slower cooling yields coarser grains and improved ductility. Pyrometers and exit-temperature sensors feed control systems that tune cooling to the alloy and temper target.

Stage 7: stretching, straightening, and cutting

Profiles often receive controlled stretching while still warm to remove internal stresses and improve straightness. Straightening fixtures and stretcher-smoothers correct residual bow and twist. Then cutting to length occurs using saws or flying-shear cutters when continuous production speed requires in-line separation.

Stage 8: heat treatment and aging

Certain alloys need solution heat treatment plus artificial aging to reach design strength. For 6000 series alloys, heat treatment sequence typically includes solutionizing, quenching, then aging. For profiles that cannot undergo full solution heat treatment after extrusion, tempering and aging schedules produce mechanical targets within what extrusion plus post-process allow.

Stage 9: secondary operations and surface finishing

Common secondary processes include:

• Stretching and straightening

• Machining and punching

• Anodizing for corrosion resistance and color

• Powder coating for enhanced finish and durability

Table 2 common secondary processes, typical turnaround

Quality control checkpoints

• Incoming billet chemistry and porosity inspection

• Furnace temperature uniformity scans

• Die trial extrusion with measurement of profile dimensions and concentricity

• Surface inspection using visual and automated optical systems

• Mechanical testing of sample coupons for tensile and hardness values

Implement statistical process control charts for key dimensions and mechanical values. Frequent sampling during die trials reduces scrap once full production begins.

Common defects, causes, and remedies

• Surface seams or tears — cause: improper billet heating or contaminated lubricant; remedy: adjust furnace profile and clean billet surface.

• Surface cracking on corners — cause: die bearing too short or ram speed too high; remedy: extend bearing length, reduce speed.

• Internal porosity — cause: trapped gas or poor billet quality; remedy: degassing supply and billet inspection.

• Excessive die wear — cause: abrasive alloy, low die temperature, poor lubrication; remedy: increase die preheat, improve lubricant, change die material/coatings.

Productivity levers and cost drivers

Main drivers include press tonnage utilization, billet yield, die changeover time, secondary operation batching, and energy consumption from billet furnaces. Reducing non-productive die change time and increasing run lengths for similar profiles improves per-piece cost. Productivity studies highlight ram speed optimization and tooling standardization.

Design constraints and best practices for extruded parts

• Maintain reasonable wall thickness ratios; thin webs should have supporting ribs.

• Avoid extremely heavy hollow sections that require excessive extrusion ratio.

• Specify fillets on internal corners to minimize stress concentration.

• Plan for tooling cost by reusing standard die features when possible. Use design limit tables supplied by extrusion associations for concrete numeric limits.

Three tables for quick reference

Table 3 recommended process setpoints by alloy family

Table 4 extrusion press sizing quick guide

Table 5 surface finish options and production impact

Advanced considerations — die thermal control and lubrication

Die thermal cycling impacts dimensional consistency. Tool steels gain thermal cracks when cycles are extreme. Die preheat reduces thermal shock. Release agents or lubricants help flow and reduce sticking. Many plants use tailored die coatings or tool steels for extended life, especially with abrasive alloys.

Environmental, health, and safety

Furnaces and presses pose thermal and pinch hazards. Proper ventilation manages fumes from lubricants and anodizing baths. Energy recovery and efficient furnace insulation lower plant energy use. Safety protocols for die handling and lockout-tagout remain mandatory.

Practical checklist for first die trial

1. Verify billet chemistry and heat-treatment history.

2. Confirm billet and die preheat targets on oven controllers.

3. Run small trial at reduced ram speed; measure wall thickness and flatness.

4. Check surface condition for streaks, blisters, or seam lines.

5. Record energy usage and cycle time for baseline productivity.

6. Adjust ram speed and cooling pattern iteratively until profile meets tolerances.

FAQ

Q1: What temperature should the billet reach before extrusion?
A1: Typical billet furnace setpoints lie between about 400°C and 500°C, depending on alloy. Final setpoint depends on alloy chemistry and desired flow during extrusion.

Q2: How does extrusion ratio influence press selection?
A2: Higher extrusion ratios require greater ram force and thus larger press capacity. Profile area and complexity determine the required tonnage; small sections may use a few hundred tons while heavy sections demand thousands.

Q3: Which alloys are most common for architectural extrusions?
A3: 6000 series alloys, such as 6063 and 6061, dominate architectural and structural extrusions because they balance extrudability and strength.

Q4: What cooling method yields tighter mechanical properties?
A4: Faster cooling through the critical 510°C to 315°C window tends to produce finer grains and higher hardness. Controlled spray cooling or quenching produces tighter mechanical outcomes compared with slow air cooling.

Q5: How to reduce die wear for abrasive alloys?
A5: Raise die preheat, use higher-grade die steels or coatings, improve lubrication, and avoid abrupt thermal cycles. Regular die maintenance and proper billet cleanliness also reduce wear.

Final checklist for engineers before production release

• Confirm final die geometry and bearing length.

• Verify furnace calibration and thermal uniformity.

• Establish initial ram speed and tool-lubricant schedule.

• Run SPC plans for key dimensions and mechanical tests.

• Document post-extrusion handling plan including cooling, straightening, and any heat treat.

Closing notes on reliability and sources

This material synthesizes industry manuals, extrusion council references, and manufacturer technical notes to provide both practical numbers and troubleshooting guidance. For die-specific tolerances and precise heat-treatment cycles consult alloy supplier datasheets and the extrusion manual for full control details.
