Applications of wood pellets: biomass burning plants, power plants, wood processing plants, fertilizer factories, chemical factories, food factories, livestock, etc.

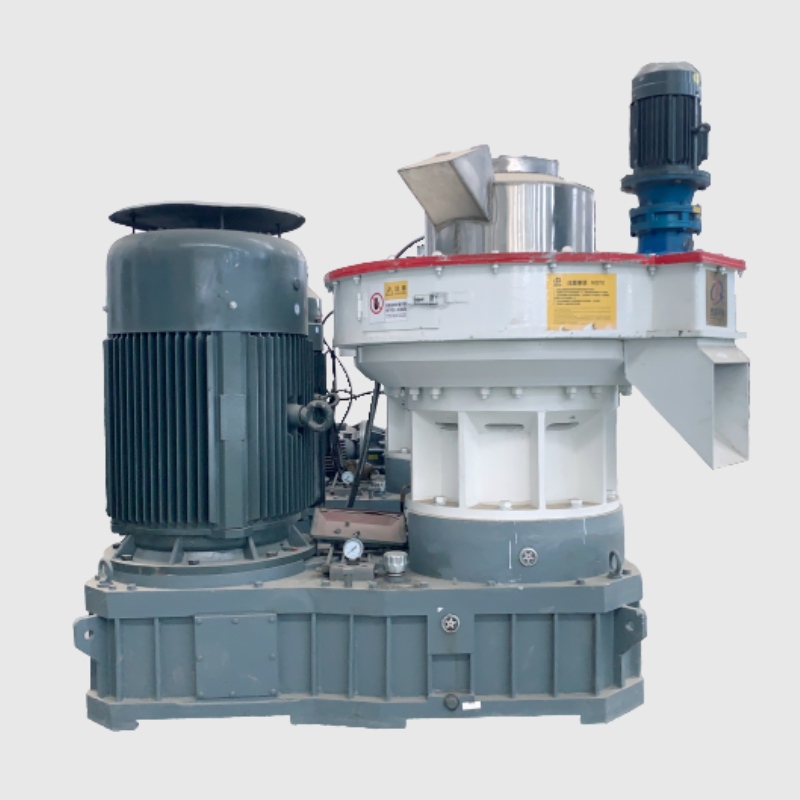

Model: SL-560 Capacity: 1.5-1.8t/h
A wood pellet machine is an ideal machine specifically designed to produce various types of pellets, which is a ring-shaped pellet mill. The pellets produced can be used as animal feed or as biomass fuel, fuel for power generation, etc. In fact with the same function, there is also the wood pellet mill, both of which carry out pellet production. If you are interested, welcome to contact us for more details! And our sales manager will offer a great solution to facilitate your business.
Advantages of the New – Type Biomass Pellet Machine
Easy Operation
High – Quality Material Selection
Bearing Design
Ring Die Design
Unique Design Features
- Non – coplanar Press Roll and Bearing: Adopts a non – eccentric shaft design with externally mounted bearings for a longer service life.
- Circulating Oil Lubrication System: Eliminates the need for grease lubrication for the entire service life.
- No Slewing Bearing: Eliminates concerns about frequent slewing bearing failures.
- Impurity Storage Function: The machine can store small iron blocks, stones, and other debris.
- Shortened Main Shaft: Reduces the risk of fracture and increases bearing service life by more than 5 times.
- Hydraulically Supported Hatch Cover: A single operator can replace molds and press rolls within 20 minutes, enabling easy operation, time and labor savings.
- Rapid Roll Gap Adjustment: Adjustment of press roll gap can be completed within just 2 minutes for hassle – free operation.
Certifications & Core Benefits
- New Patent Certificate Obtained
- Pellet Forming Rate up to 99.5%
- Cost Savings of 30 RMB per Ton of Pellets Produced
- Maximum Raw Material Moisture Content Tolerance of 27%
Key Differences from Conventional Equipment
- Direct Motor – Gearbox Connection: Enhances energy conversion efficiency and boosts production output.
- Sealed Press Roll without Bearings: Incorporates an eccentric shaft design for improved performance.
- Integrated Lubrication and Cooling System: Cools lubricating oil without stopping the machine, and requires no grease lubrication for life.
- No Slewing Bearing: Avoids frequent malfunctions associated with slewing bearings.
- Shortened Main Shaft: Lowers fracture risks and extends bearing service life by over 5 times.
- Hydraulic Hatch Lifting System: Allows one – person operation for quick and easy replacement of molds and press rolls.
- Wear – Resistant Stainless Steel Ring Die: Treated with vacuum furnace quenching for uniform hardness, high wear resistance, and fracture resistance.
- Wear – Resistant Alloy Welded Press Wheels: Offers an ultra – long service life while protecting the mold from damage.

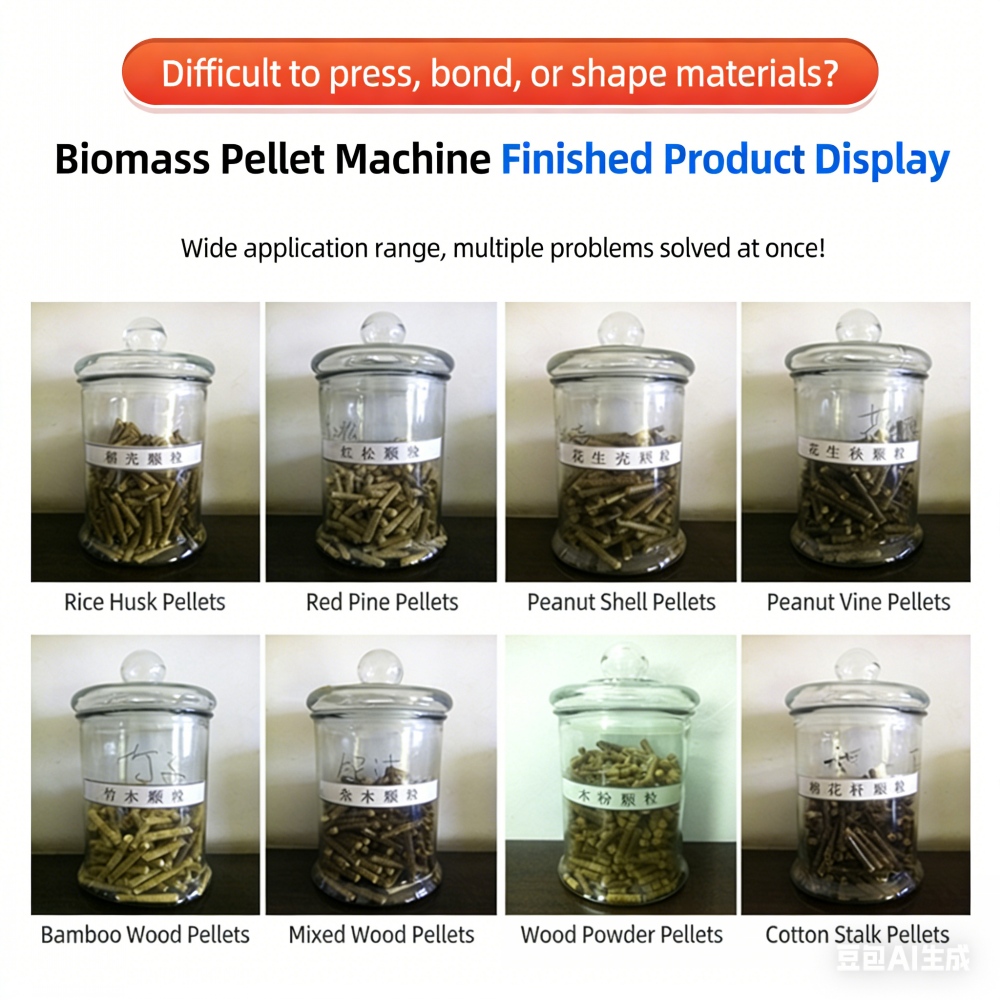

Raw Materials for Wood Pellet Production
Applications of Wood Pellets
Structure of the Wood Pellet Mill
How Does a Wood Pellet Mill Work?
- Raw materials are fed into the pelletizing chamber through the inlet.
- Driven by natural gravity and centrifugal force generated by the rotation of the ring die, the materials are pressed against the inner wall of the die.
- With the help of feed knives, the materials are evenly and continuously fed into the gap between the die and rollers.
- Thanks to the optimized internal design of the pelletizing chamber, a stable extrusion pressure (extrusion zone) is formed.
- Under the strong extrusion of the rollers and die, the materials are compacted and forced through the die holes, where they take shape.
- The materials are continuously conveyed and extruded repeatedly for consistent pellet formation. The formed pellets are pushed out of the die holes and then cut to the desired length by the cutter.
- Finally, the finished wood pellets are discharged and drop out through the outlet.
Wood Pellet Production Line – A Profitable Start for Investors
What About the Price of Wood Pellet Mills?
Top-tier Wood Pellet Mill Manufacturer and Supplier
-

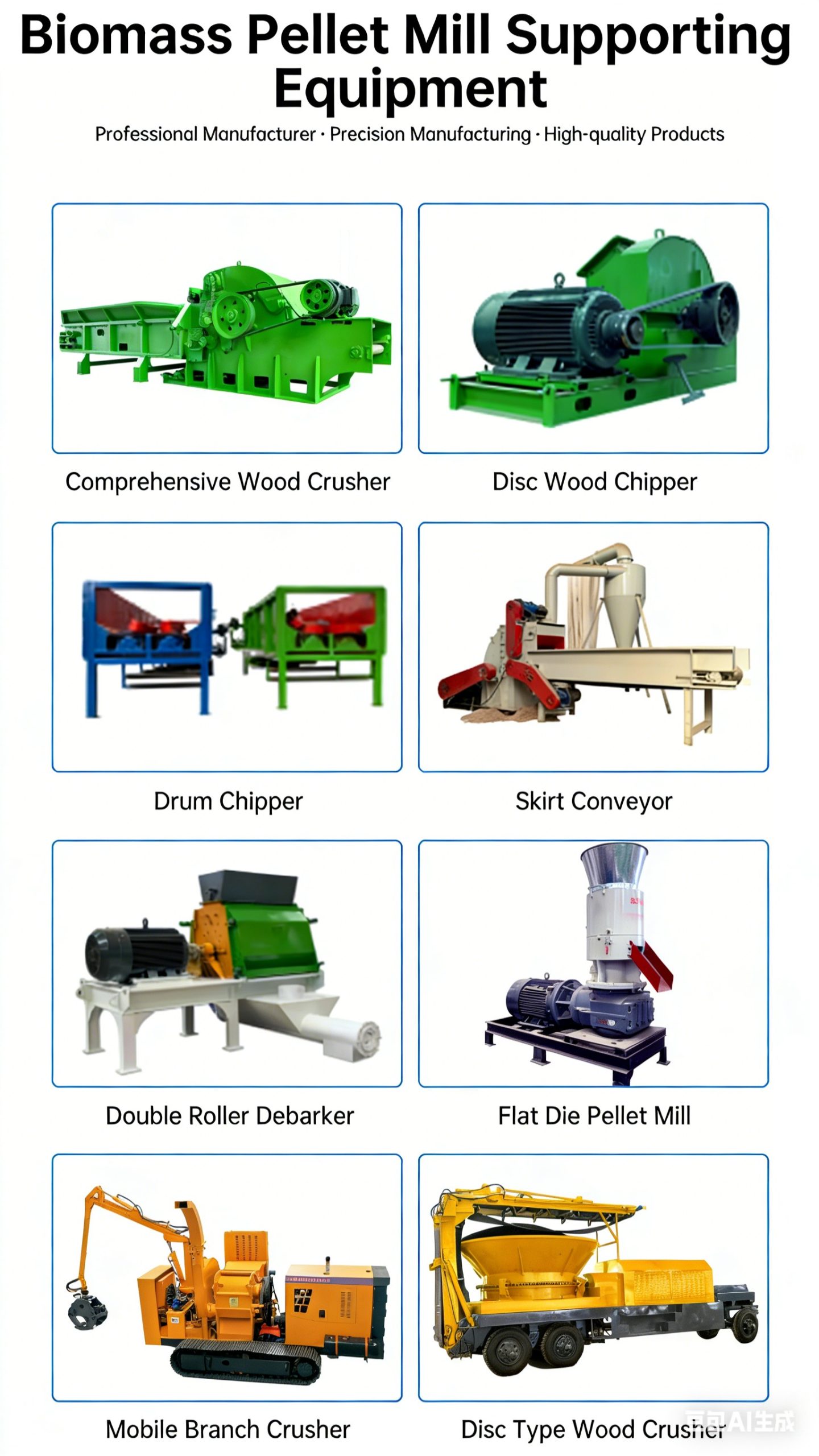

Comprehensive Product Range
As a professional manufacturer of various woodworking machinery, we offer a complete portfolio of equipment. For example, if you are looking to purchase a wood pellet mill and also need a full pellet production line, you can source all the required equipment from us in one go, saving both time and effort. -
High Cost-Effectiveness
The market is filled with manufacturers and suppliers of small and large-scale wood pellet mills. However, as an integrated manufacturer and direct distributor, we can offer more competitive pricing.
-
Globally Recognized Brand
We regularly export our machines to overseas markets, and our products are highly acclaimed by customers worldwide. Many of our clients are repeat customers, including those from Australia, Mexico, and other countries.
-
Thoughtful After-Sales Service
Our company provides comprehensive after-sales support, dedicated to resolving any issues customers may encounter during the operation of the wood pellet mill. This helps customers familiarize themselves with the machine quickly and efficiently and put it into production in no time.

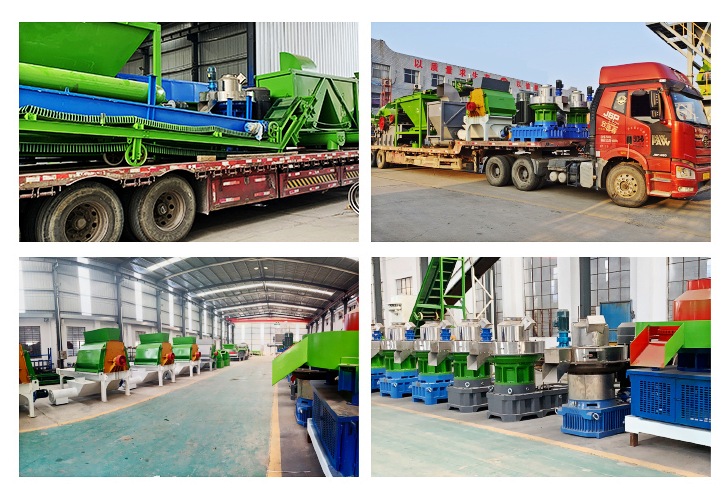

Wood Pellet Mill Projects
Unbeatable Price Advantage
With in-depth engagement in international trade, we have a thorough understanding of the usage habits and product requirements of global customers. Leveraging our own production base in Zhengzhou, China and cutting out middlemen, we provide you with high-quality mechanical equipment at a more market-competitive price, perfectly aligning with your business strategy of buying low and selling high.
Customized Solutions
We fully recognize the uniqueness of your needs. Our professional mechanical engineers can tailor equipment design solutions according to your actual requirements. Whether for complete machines or spare parts, we offer OEM/ODM customization services to fully meet all your personalized needs.
Safe Transportation Guarantee
You can entrust us with confidence for our rich practical experience in container shipping packaging. Combined with international transportation conditions, we adopt high-strength and durable materials such as fumigation-free wooden crates and iron frames for product protection. Our long-term cooperative professional logistics partners customize exclusive transportation solutions and optimal routes for you, minimizing the risk of cargo damage and ensuring on-time delivery and full-process safety of your goods.
Worry-Free After-Sales Service
When you purchase our export equipment, you can enjoy a one-year warranty and professional guided installation service, lifetime online technical consultation, as well as exclusive discounts for mail-order replacement of spare parts, making the post-operation maintenance of the equipment completely hassle-free. The equipment is equipped with internationally universal parts, ensuring convenient purchase and replacement of spare parts for you all over the world.
